加工定制	是

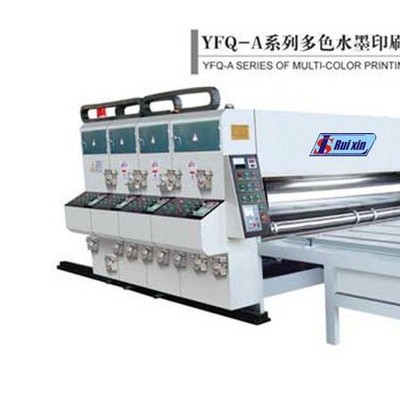

YFQ-A系列多色水墨印刷開槽機:產品概述:YFQ-A系列多色水墨印刷開槽機采用微電腦數字調相儀,相位調整可直接輸入可調數字,調整更快,精度更高.

送紙部
◆鏈條半自動送紙
◆側規定位．保證送紙準確
◆自動計數
印刷部
◆采用微電腦數字調相儀，相位調整可直接輸入可調數字，調整更快，精度更高
◆電動行星相位調整．數字顯示。
◆機械停車時．網輥自動脫離印版表面。
◆上墨膠輥自動空轉系統．機器暫停時油墨不至干涸。
◆YFQ-A系列多色水墨印刷開槽機設有自動剎車機構．機組分離后．剎車機構鎖緊周向位移．
保持印刷機位。
◆可任意組合一到四色。
◆氣動自吸式供墨系統．節省油墨．清洗方便。
◆根據用戶要求．大輥筒的印版可選用掛版裝置．使貼版省時．省力。
多色水墨印刷開槽機開槽部
◆開槽相位360度電動行星輪調整。
◆開槽部位刀具特殊設計制造．使用壽命長。
◆齒輪45#鋼鍛件．斜齒傳動。
◆所有輥筒經鍍鉻拋光處理。
◆噴淋潤滑．保證使用壽命。
◆機組電動移位，氣缸鎖緊。
Send a paper department
◆The chain half auto send paper
◆Side provision，assurance send paperaccurate
◆Auto．count
Printing department
◆Adoption micro-computer numeral adjust mutually an instrument．mutually adjust direct importation adjustable numeral，adjust soonen the accuracy be higher
◆Dynamoelectric planet mutually adjust．numereI manifestation
◆Machine parking，net Gun auto escape from 10 pnnt version surface．
◆Top **m Gun auto empty turn system。machine pause pnnting ink not goto dned up．
◆Establish auto brake organization．machine set separate after．brake organization lock tight the week move toward and keep printing flight．
◆Can arbitrarily the combination be 1-4 colors．
◆The spirit move to provide Mo system frOm the absorb type．economicaI printing ink，clean convenience．
◆According to customer request，the print of big Gun tube version can choose to use to hang a version to equip，make to stick a version to save time．labor-saving．
Open a slot department
◆Open slot mutually a planet round with dynamoelectric 360 degrees to adjust．
◆Open slot part knife a special design manufacturing．service Iife long．
◆WheeI gear 45#steeI Duan piece．the indined Chi spread to move．
◆All Gun tube through plate chrome to throw Iight a processing．
◆Spray to pour to lubricate．a(chǎn)ssurance service Iife．
◆The machine set is dynamoelectric to move and the air cylinder Iock be tight．

型號 Model	**大進紙尺寸 Over the paper area	**大印刷面積(mm2) Printing area	**小紙板長度  (mm) Minimum carton size	機械速度(片/min) Working speed (Piece/min)	印版厚度 Printing version thickness
YFQ-A2500	1450*2500	1450*2300	400	0-60	4.5/6
YFQ-A2800	1450*2800	1450*2600	400	0-60	4.5/6
YFQ-A2900	1450*2900	1450*2700	400	0-60	4.5/6
